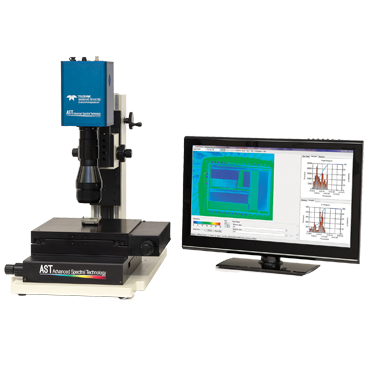

• Meant as an aid to find defects either visually or thermo graphically with the MWIR band (3-5 microns).



• Thermo graphic microscope to find thermally identifiable defects.



• Applications for aerospace, medical device, semiconductor and forensic, materials and processes development and analysis.



• Magnifications from Macro to 1x, 2.5x, 4x, and 5x.



• Precision 150mm travel manual coarse and fine precision stage for accurate navigation and metrology.



• Stage has 6mm cross-roller, lead-screw/stepper motor construction and can accommodate heavy loads (up to approximately 25 kilos)



• Precision Z axis 250mm travel manual column for sample and tooling compatibility.



• Thermal detection to 20 mK.



• Spatial resolution below 10 microns.



• 640 x 512, 20 micron pixel InSp FPA on a closed cycle dewar (no LN2 required).



• Turn key system.



• System includes various image analysis and enhancement features.



Options:



• Motorized (& CNC) X & Y Axis.

• Motorized (& CNC) Z Axis.

• 0.1 or 0.5 µm Linear Encoders for X, Y, and Z Axes.

• Laptop or Industrial Computer Interface.

• 200mm, 300mm and Custom Stages.

• Automated and Custom Stages.

• Wafer Loaders.

• Illumination Packages.
